HOW BIG MINE INDUSTRY IS IN LATIN AMERICA
Almost all countries in South America and the Caribbean are expanding mining exploration as one of the essential branches of their economies. After decades of moderate activity, most countries in Latin America have experienced a dramatic increase in mining operations due to favourable metal prices and the need to generate more government revenue. In the last decade, mining in Latin America tripled from US$90.1 billion in 2001 to US$305.8 billion in 2011.
It is worth mentioning that the region's lithium reserves account for 61% of world reserves, copper for 39%, silver for 32% as well as nickel, molybdenum and tin for 25%, zinc for 23%, bauxite for 18%, lead and iron for 15%, and gold for 11 per cent. Common knowledge is the high rank of Chile and Peru in world copper production. The five most significant of them produced almost 3 million tonnes in 2021 – Escodina Mine, Collahausi Mine, El Teniente Mina, Cerro Verde Mina, and Las Bambas Project.
PRE–2010 SAFETY MEASURES
At the beginning of the century, even though some safety standards were in place but were enforced primarily on large mining operations, the biggest issue was in the enforcement in medium and small-size mines. SERNAGEOMIN, the National Geology and Mining Service and a governmental agency had only 18 inspectors for almost 3,500 businesses.
With such a small number, there was a minimal chance of ensuring the safety protocols nationally. That's why many mines were not forced to improve their standards, being left with an untrained and inexperienced crew and having single-entry operations. During that time, building safety shelters or emergency ladders were neglected for cost-saving and profits. So it is not surprising that business owners and operators didn't pay too much attention to abiding by the rules. All of it was leading to potential disaster.
2010 ACCIDENTS
As metal prices rose and companies continued to seek South America's enormous deposits of minerals, the industry grew more rapidly than it could be regulated. There were conflicts and strikes among the workers concerning safety conditions, compensation with overpay, and a large number of illegal mining operations, where neither rules nor regulations were applied. Across the continent, the situation was very similar. Eight miners were found dead in February after an explosion at a coal mine in Oyon province in northern Peru.
The worst mining accident since the 1980s happened in June of the same year at the Carbones San Fernando coal mine in Colombia. A methane explosion killed more than 70 miners. It took rescuers days to pull out all the bodies. In August in Venezuela, at least six miners died in a wildcat gold mine explosion, but it is believed that the number was actually higher, reaching up to 15 in total.
Chile Mine Disaster: LOS 33

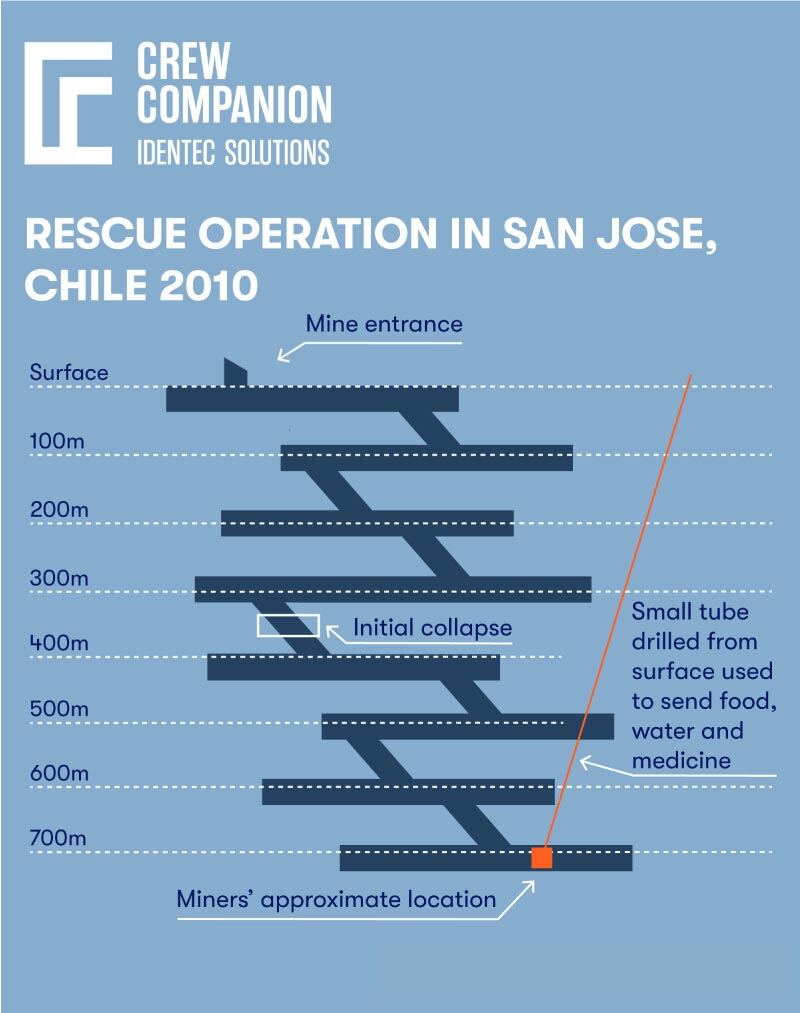

In August 2010, a tunnel collapsed in the privately owned medium-sized San Jose mine in the Atacama Desert of northern Chile. The story quickly went worldwide. After the state-owned mining company Codelco took over rescue efforts from the mine's owners, exploratory boreholes were drilled. Seventeen days after the accident, a note was found taped to a drill bit pulled back to the surface: "Estamos bien en el refugio los 33" ("We are well in the shelter, the 33 of us"). It took that long because all maps were outdated, and some drillings drifted off target. Miners were trapped more than 620 meters below ground. The mentioned refuge was a place without a proper ventilation system or energy supply. Mine owners never finished the emergency ladder in the ventilation shaft to the top of the mine.
This way was blocked on the 7th of August after the second collapse. The only way to provide water and food to the miners and exchange messages was a narrow borehole the size of a grapefruit.
Three separate teams started to drill three escape boreholes, using the equipment and experience of multiple international corporations using different strategies. Team B was the first one to reach miners. The 638-meter-long drilled shaft had to be enlarged in its diameter twice, from 14cm to 30cm and from 30cm to the final 71cm. After 69 days, on the 12th & 13th of October, they were brought to the surface, one by one, in a unique capsule, in an operation that took 22 hours. Fenix 2, the named evacuation capsule, a 54cm in diameter device, was narrow enough to avoid hitting the sides of the tunnel and ensure a safe ride up. It had installed an onboard oxygen supply, lightning, and a communication system.
THE AFTERMATH of the Chile Mine Disaster
Despite the good news of rescuing the trapped miners, measures were taken to ensure this kind of accident will not happen again. International work safety groups started to press Chile to adopt international standards for mine safety and execute them properly by the agencies. The minimum standards for mines, such as ventilation systems, fire protection, and emergency response procedures, established in the International Labor Organization agreement in 1995, were tried to be reinforced. Still, unfortunately, up to this day, they have yet to be ratified by Chile. Some union leaders in Chile complained they had seen no notable improvement in mine safety throughout the first year after the accident. A few days after the event, the President of Chile dismissed the national and regional directors of Sernageomin. Afterwards, the Mining minister announced changes to avoid accidents like the one in San Jose. The number of inspectors almost doubled to 45 from 18, the same as the newly created Superintendence of Mining budget.
Shortly after, more than 15 small and medium-sized mines in the Atacama region alone were closed after inspections which increased from 2,600 to almost 4,000 nationwide. Operations were stopped mostly due to unsafe working conditions, lack of ventilation shafts, alternative evacuation exits, and emergency refuges. In addition, San Esteban Primera Mining Company filed for bankruptcy after being flooded by lawsuits. Court orders froze all the assets by the end of the year.
Throughout the years, the situation improved. Awareness of safety issues, along with a push from unions and inspections from Sernageomin, helped improve miners' working conditions. New technologies, such as personnel and asset tracking tags (read more about miner tracking), traceability systems and gas-detecting sensors, helped significantly. In addition, there is a number of global and continental companies that provide solutions to improving safety and efficiency in the region.
What about one more mining safety share?
CHANGES IN MINING CULTURE POST-DISASTER
In addition to the regulatory changes and the cultural shift, technological changes in mining safety were initiated due to the Chile mine disaster. Several state-of-the-art mines in South America have implemented real-time tracking systems where miners' locations, besides environmental parameters, are tracked using RFID tags, GPS, and wireless communication. These systems offer real-time responses to possible hazards at mines today, thus greatly reducing the possibility of accidents. In addition, mechanization and remotely controlled plants have been implemented for the most dangerous processes, thus reducing the degree of human exposure to hazardous environments. It is not only additional safety added by the adoption of such technologies but also a boost in operational productivity, which proves how innovative technology can be utilized in making safer mining activities. These developments, along with strict enforcement of regulations regarding safety, demonstrate holistic approaches to transformation in mining safety in South America post-2010.
In the interview for LatAm Investor held couple of years ago, Chile's minister of Mining Marcela Hernando said about mining sector in 2030 (5): "We want mining to be an example of productive activity, defining new economic roles for our natural resources. We want to grow past the simple extraction of minerals and add value by betting on a just social-ecological transition that is centred around the communities. That involves reducing C02 emissions and the mining industry's environmental impact.
Chile should be fundamental in the transition to clean energy and for that reason it is vital to increase our smelting capacity. On the other hand, we are betting on strengthening small and informal mining by giving it the state help it needs to develop. This is the commitment of the government and our compass is also pointing at increasing the inclusion of women in the industry."
FAQ's
Is mining a dangerous job?
Working in mines is dangerous. Most common accidents involve toxic gases, fire, explosions, and crushing by rocks while cave-ins.
What metals is Chile mining?
Chile is a global leader in copper production, with 27% overall. It's one of the most industrialized countries in South America, where mining is one of the top 3 industries.
TAKEAWAY
Responsibility for safety lies mainly with companies that carry out mining operations. They have duties to ensure that all working personnel is protected from physical harm and health damage either with additional equipment, measures, training, or assessments. In addition, insurance companies can and will act as risk protection advisors to be a second level of the accident prevention system. The next ones are workplace safety regulatory bodies regulating, standardizing, and inspecting mines. Additionally, Worker Unions are proposing changes to protect employees and ensure stricter laws regarding safety.
All of those actions are made to minimize the risk of accidents in the aftermath of the 2010 Chile mine disaster. However, many historical ones could be avoided or foreseen and stopped. For this, all the elements of the safety puzzles must be put together in order to have as low-rate-of-accidents as possible.
