Terminal Tracker
Modules

Visibility and safety for your operations
Combining advanced software with multiple identification, positioning and telemetric technologies, Terminal Tracker from IDENTEC SOLUTIONS is a robust platform that enables real time visibility, monitoring and control of all terminal events. Created as a modular solution that covers several areas of operations, Terminal Tracker is ready to improve your yard inventory accuracy and increase the efficiency and safety of container operations.

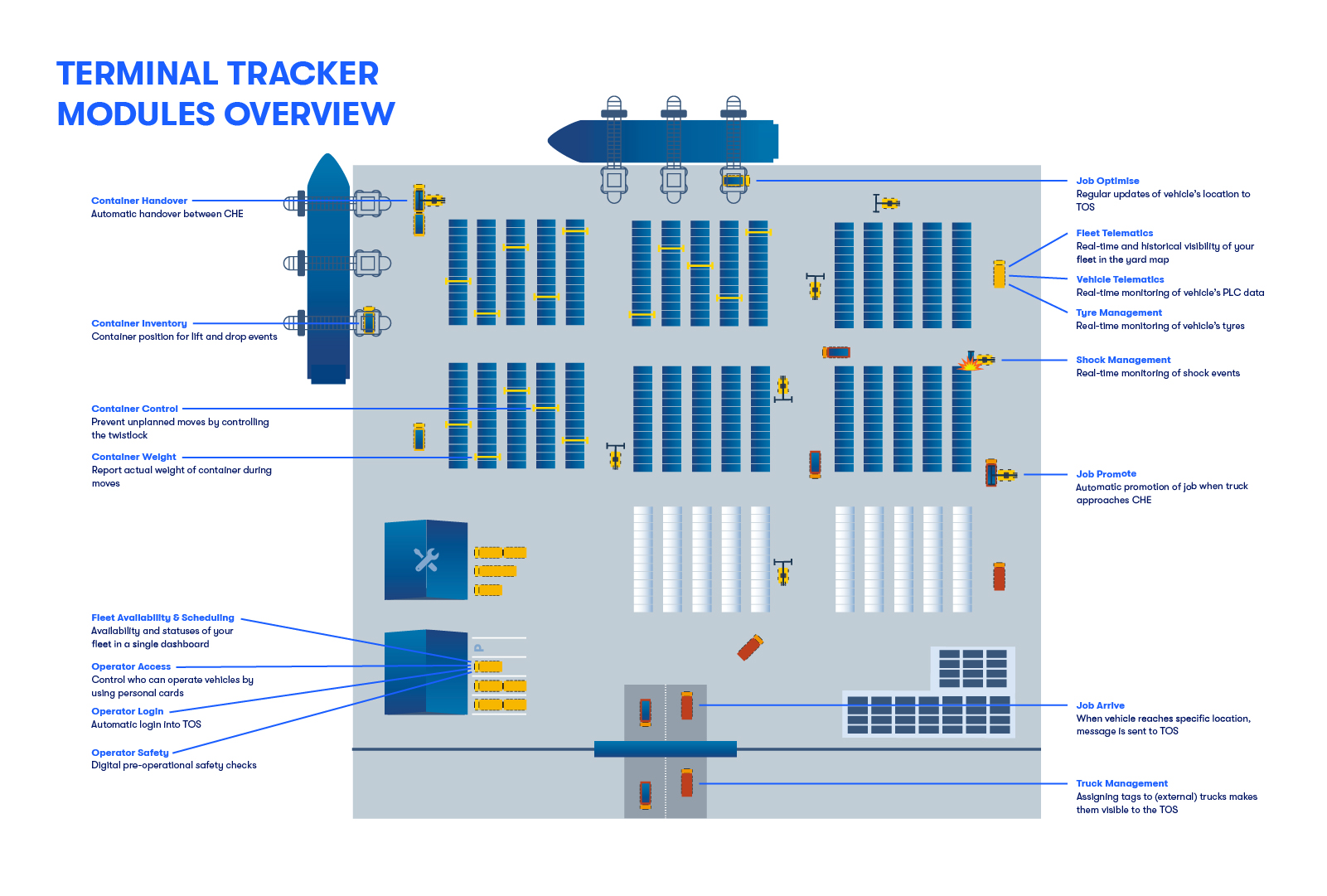

Terminal Tracker Modules
To help transform the way terminals manage industrial processes and safeguard lives, IDENTEC SOLUTIONS delivers real-time systems based on more than 20 years of experience, designed to integrate into your infrastructure and operations characteristics – Terminal Tracker is a fit for brown or green field, ready to communicate with several vehicle types and Terminal Operating Systems (TOS).

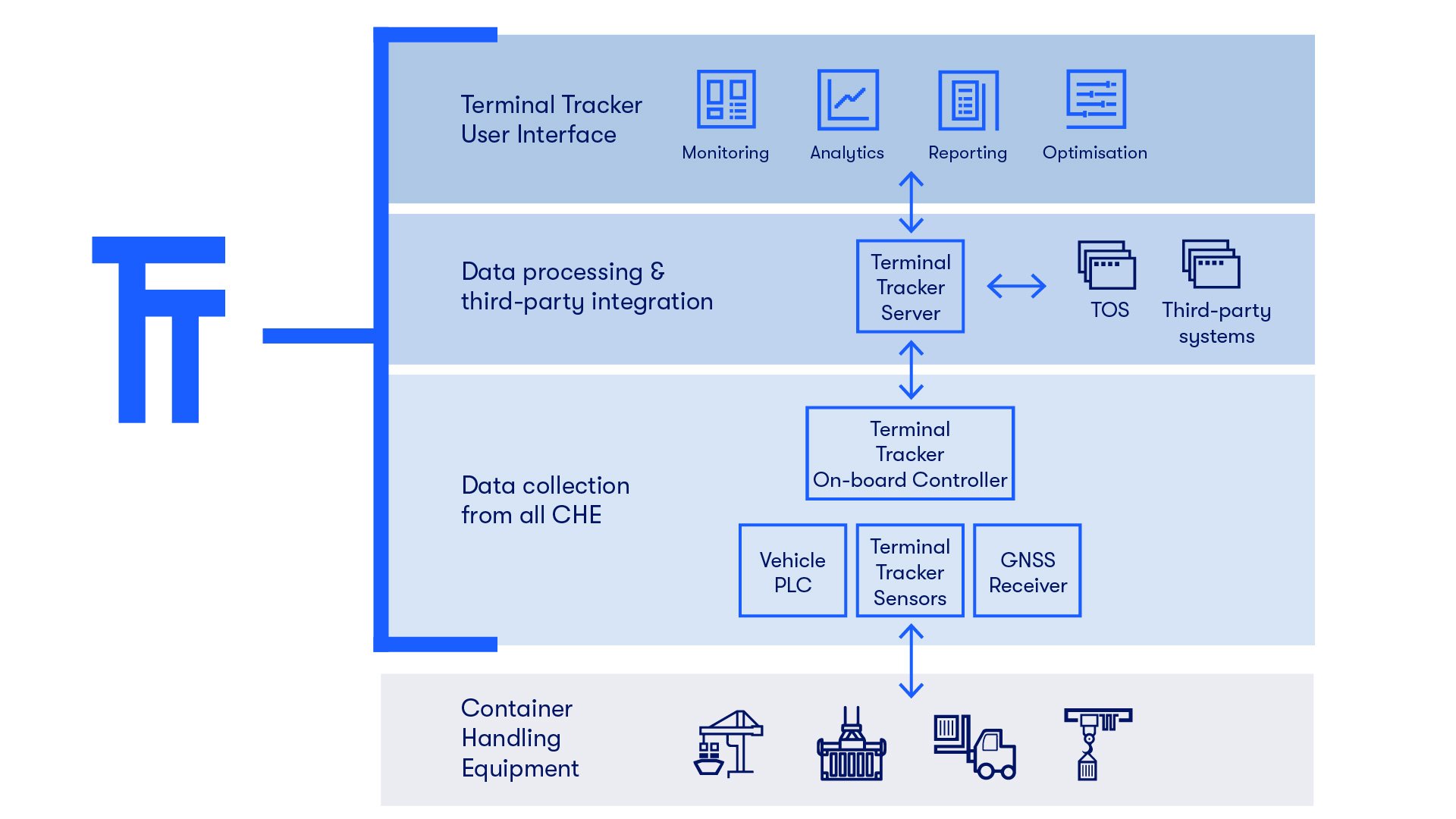

That’s how we designed Terminal Tracker:
- modular architecture
- varity of technologies
- for all aspects of container terminal operations


Container Inventory
The Container Inventory module takes container lift and drop events linked to a slot location via position detection and generates a message for a Terminal Operating System (TOS), which can then complete the assigned job.
Main benefits:
- Increased inventory accuracy
- No more lost containers

Container Handover
The Container Handover module builds upon the Container Inventory module by adding various positioning and vehicle identification technologies that allows Terminal Tracker to link container events from one container handler to another.
Main benefits:
- Zero human interaction in the handover of containers
- Single and Twin lifts jobs completed in real time

Container Control
Main benefits:
- Keep track of unplanned moves
- Avoid wrong moves

Container Weight
Main benefits:
- Reduced operational processes by weighting containers during moves

Job Promote
The Job Promote module utilises IDENTEC SOLUTIONS RFID events to identify the current truck (both Terminal Trucks and Over-The-Road trucks) nearest the Container Handling Equipment and promotes the current job linked to that truck. This places the job at the top of the Radio Data Terminal job list screen making the selection of the job easier, quicker and more accurate for the Operator.
Main benefits:
- No need to search for jobs on a list
- Reduced time to select the job, as the truck to be serviced will always be on the top of the list

Job Optimise
The Job Optimise module makes use of positioning data generate by the IDENTEC SOLUTIONS Onboard controllers and position sensors to provide intelligent location updates to the Terminal Operating System (TOS). This allows the TOS to make better decisions when distributing job orders to Container Handling Equipment allowing Terminal operations are as efficient as possible.
Main benefits:
- Increased efficiency in job planning
- TOS planning based on real time information, instead of last job completion

Job arrive
The Job Arrive module takes a deeper look at the dispatched or selected job and identifies the steps involved in completing the job. Once the steps are identified the Terminal Tracker Onboard controllers will monitor data from the IDENTEC SOLUTIONS position sensors to automatically send arrival notifications at key points in the job execution process.
Main benefits:
- Job steps completed in real time
- Increased synergy among Container Handling Equipment (CHE) with zero human interaction

Operator Login
The Operator Login module utilises the authorisation events generated by the IDENTEC SOLUTIONS card reader to automate the process of logging an Operator and Container Handling Equipment in to and out of the Terminal Operating System. This eliminates the need for the Operator to interact with the Radio Data Terminal before receiving job instructions or after executing the last job at the end of a driving session.
Main benefits:
- Reduced human interactions to login on TOS

Operator Access
The Operator Access module utilises the information collected by an IDENTEC SOLUTIONS card reader connected to the Terminal Tracker Onboard controllers. The card identification is checked against an onboard list to restrict access to only approved vehicle Operators, if the card inserted is authorised to operate the vehicle a signal is sent to the PLC or Ignition Control Unit to all operation. All operational events reported back to the Terminal Tracker server include the authorised Operator details allowing easily accessible reports and driving statistics via the Client user interface for Terminal Tracker.
Main benefits:
- No more unauthorised usage of equipment
- Keep track of unauthorised attempts of equipment operation

Operator Safety
Either as a standalone or building upon Operator Access the Operator Safety module draws from a software defined set of Pre-Operational Safety Check (POSC) questions that must be answered once per shift before a vehicle can be operated. The Operator Safety module integrates seamlessly with other Terminal Tracker modules such Operator Access and Fleet Availability and Scheduling to improve the overall safety for a Terminal’s personnel.
Main benefits:
- Simplified and improved safety check
- Reduced operation of unfit equipment
- Increased synergy between Operations and Maintenance

Fleet Availability & Scheduling
Main benefits:
- Increased visibility to plan your operation
- Increased synergy between Operations and Maintenance

Fleet Telematics
The Fleet Telematics module utilises the information collected by the Terminal Tracker Onboard controllers from IDENTEC SOLUTIONS sensors, PLC signals and vehicle integration. The information is collated and processed to create convenient tasks and reports for the purpose of live and historical operations tracking as well as productivity metrics across a user specified time range.
Main benefits:
- Increased visibility of your fleet
- Know your operation’s productivity and behaviour

Vehicle Telematics
The Vehicle Telematics module utilises the information collected by the Terminal Tracker Onboard controllers from IDENTEC SOLUTIONS sensors, PLC signals and vehicle integration. The information is collated and processed to create convenient tasks and reports for the purpose of live and historical vehicle data as well as productivity metrics across user specified time ranges.
Main benefits:
- Monitor your fleet status
- Understand your consumption to work more efficiently

Shock Management
Incorporating an IDENTEC SOLUTIONS-designed Shock Sensor on terminal vehicles allows the Shock Management module to report, alert, and even shut down a vehicle when a significant shock event occurs. The information is collated and processed to create convenient tasks and reports for the purpose of live and historical operations tracking, as well as productivity metrics across user-defined time ranges.
Main benefits:
- Improved safety aspect by monitoring Shocks
- Increased visibility of risky events

Truck Management
The Truck Management module utilises IDENTEC SOLUTIONS RFID events to identify the trucks (both Terminal Trucks and Over-The-Road trucks) at key points in the terminal (i.e. gates, container handling equipment, roadways) and to enhance visibility to truck operations, particularly for Over-The-Road trucks.
Main benefits:
- Bring OTR into your automated yard

Tyre Management
The Tyre Management module utilises the information collected by the Terminal Tracker Messenger Onboard controller from IDENTEC SOLUTIONS tire sensors. The information is collated and processed to create convenient tasks and reports for the purpose of live and historical operations tracking as well as productivity metrics across a user specified time range.
Main benefits:
- Improved operational efficiency and safety aspect by monitoring tyres
- Visibility for your preventive maintenance
